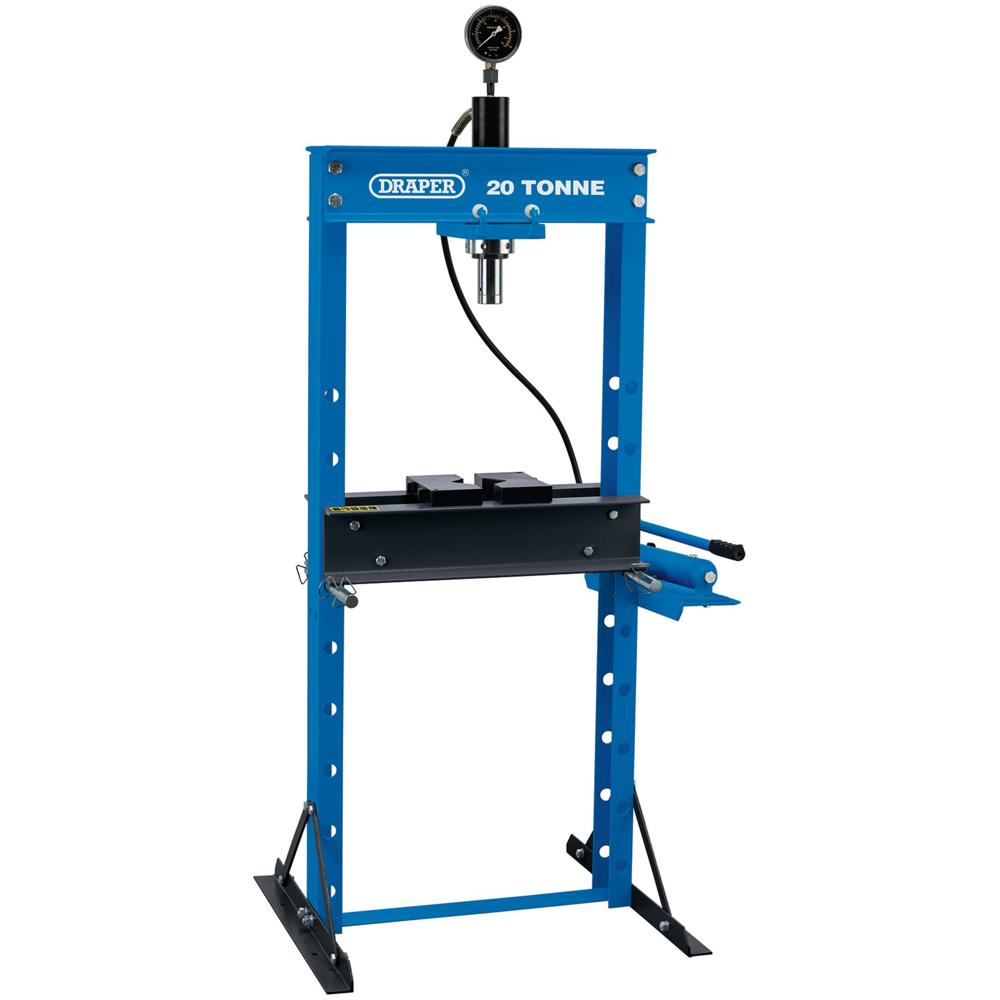

Draper Hydraulic Floor Press

About this product

This 20 tonne hydraulic floor press delivers heavy-duty pressing power for demanding industrial and workshop applications. Featuring a sliding ram and nine adjustable table heights (256, 366, 486, 606, 726, 846, 966, 1086 and 1106mm), it provides outstanding versatility for challenging pressing operations. The ram height to table spans an impressive 28-998mm range, making it suitable for both compact and larger workpieces. Engineered for precision and reliability, the glycerine liquid-filled gauge ensures accurate pressure monitoring and prolonged service life. Anti-kink coils fitted to each end of the flexible hose provide enhanced protection against wear and damage. The integrated safety valve protects against overloading, whilst the included two flat V-shaped blocks ensure secure workpiece positioning. Fully tested and certified, this 20 tonne press is built for professional-grade performance. Features and Benefits: • 20 tonne capacity for heavy-duty pressing tasks • Nine adjustable table heights from 256-1106mm • Sliding ram with height to table range of 28-998mm • Glycerine-filled gauge for precise readings and durability • Anti-kink coil protection on flexible hose • Safety valve prevents overloading Specifications: Capacity: 20 Tonne Gauge range: 0-28 Tonne Gauge diameter: 105mm Ram stroke: 185mm Ram diameter: 40mm Ram height to table: 28-998mm Working table width: 550mm Overall height: 1,785mm Weight: 113.5kg Contents: 1 x Floor Press, 20 Tonne
