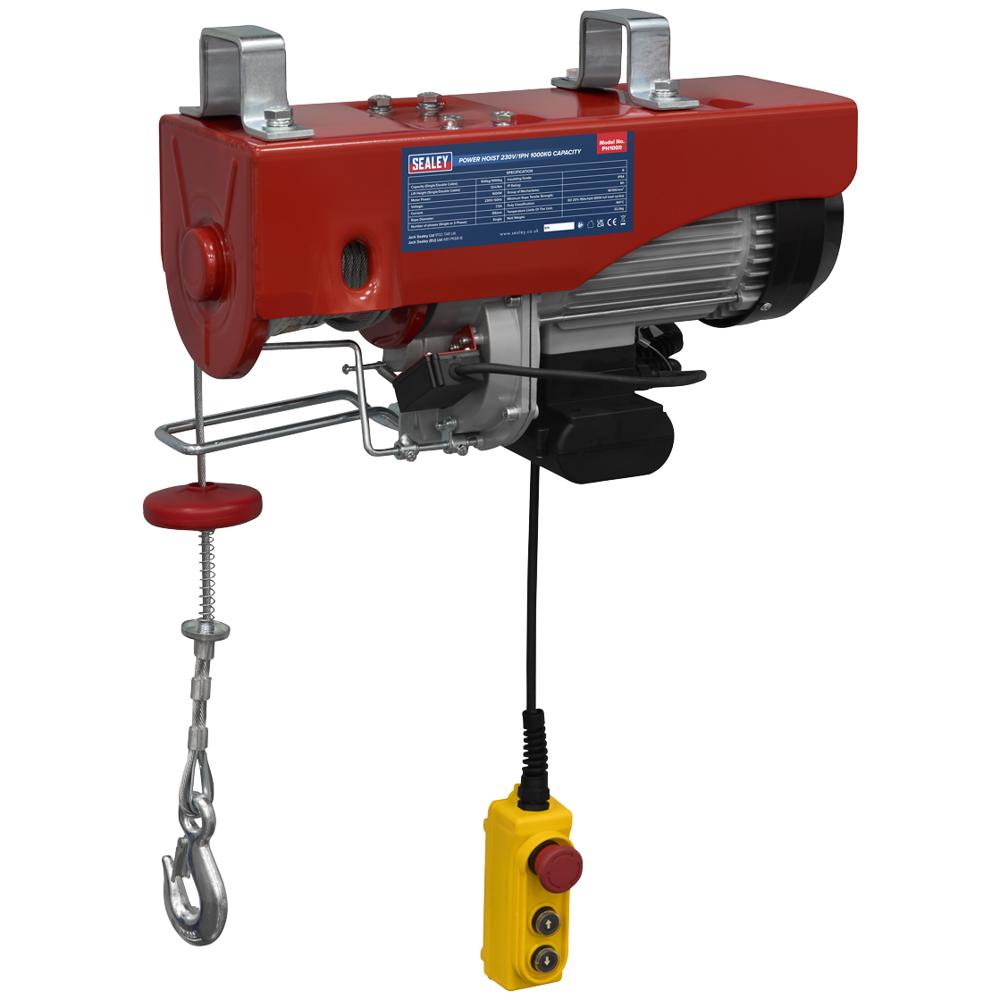

Sealey Power Lifting Hoist

About this product

A large, powerful motor capable of a number of lifting tasks, in garage, workshop, construction and industrial environments. Simple installation using the brackets provided, to suitable square section beams. Thermostatic overload cut-out switch, protecting the motor. Remote control with emergency stop for easy control from a safe distance. Powder coated steel casing, for added corrosion resistance. A large, powerful motor capable of a number of lifting tasks, in garage, workshop, construction and industrial environments. Simple installation using the brackets provided, to suitable square section beams. Thermostatic overload cut-out switch, protecting the motor. Remote control with emergency stop for easy control from a safe distance. Powder coated steel casing, for added corrosion resistance. Model No. PH1000 Specifications: Model No PH1000 Brand: Sealey Capacity (Double Cable): 1000kg Capacity (Single Cable): 500kg Current: 7.5A Duty Cycle: S3 Group of Mechanisms: M1 Insulating Grade: B IP Rating: IP54 Lift Height (Double Cable): 6m Lift Height (Single Cable): 12m Lift Speed (Maximum): (Double) 4m/min (Single) 8m/min Minimum Rope Tensile Strength: 1870N/mm² Motor Power: 1600W Nett Weight: 32.0kg Rope Diameter: Ø6mm Voltage: 230V~50Hz Work Rate: S3
