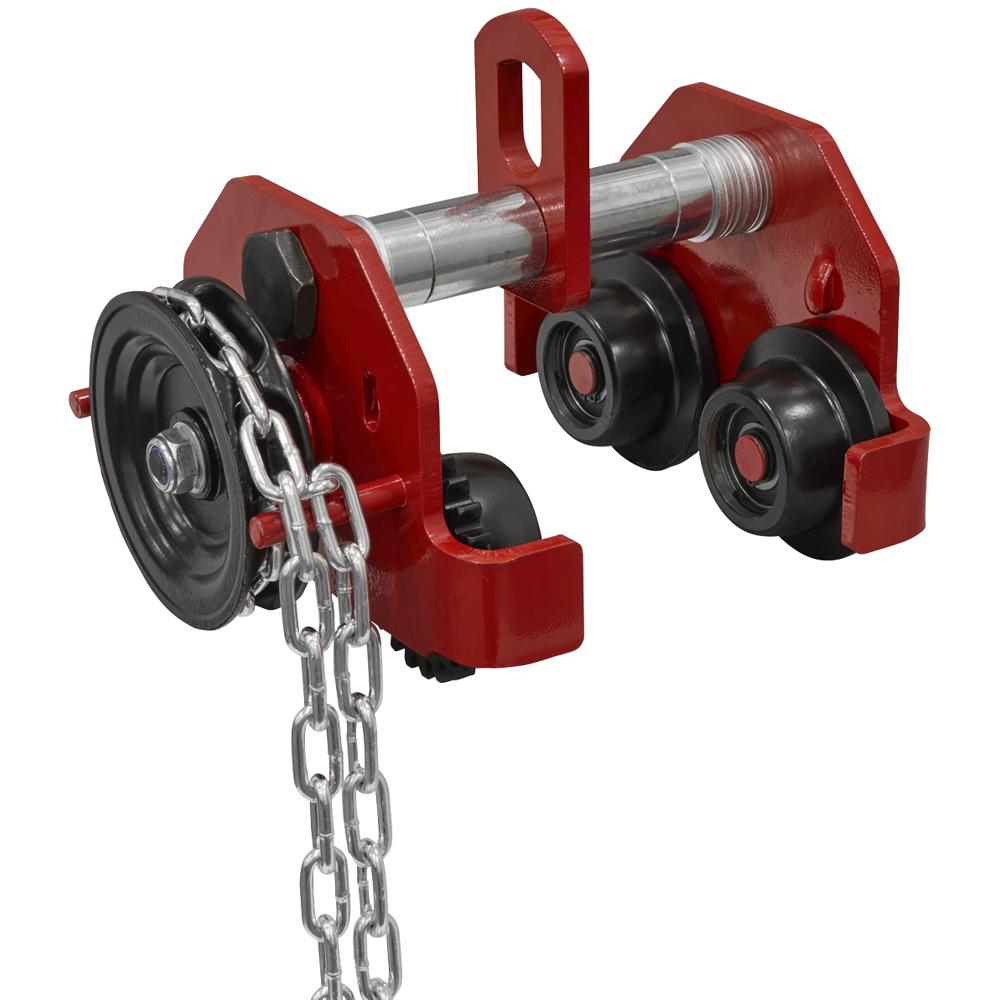

Sealey RSJ Geared Beam Trolley

About this product

The Sealey RSJ Geared Beam Trolley with 1 tonne capacity is ideal for lighter to medium-duty lifting applications where precise load positioning is required. This model is perfectly suited for workshops and light industrial environments where loads need to be manoeuvred along I-beams or RSJs with control and safety. The geared mechanism allows operators to move loads smoothly using chain operation rather than physical pushing, reducing fatigue and improving positioning accuracy. Suitable for use with lever hoists or chain blocks, this trolley incorporates wheel guards to prevent contact with other trolleys mounted on the same load bearer, ensuring safe operation in multi-trolley installations. Features and Benefits: • 1 tonne capacity suitable for light to medium-duty applications • Geared chain operation for controlled load movement • Wheel guards prevent interference with adjacent trolleys • Compatible with standard lever hoists and chain blocks • Designed for secure mounting on I-beams and RSJs Specifications: Brand: Sealey Nett Weight: 17kg Capacity: 1000kg Track Width Adjustable Range: 64-140mm Minimum Curve Radius: 1000mm A: 255mm B: 205mm C: 135mm D: 104mm E: 128mm Weight: 17kg Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm Minimum Distance Between Spans: 2500mm Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm Maximum Distance Between Spans: 6000mm
